Diaphragm valves built to DIN and BS standards, made in India

Weir type, straight through, screwed end, PTFE lined and pneumatic actuated diaphragm valves and rubber lined check valves, with PN10 flanges and rubber, PTFE, FEP and PFA linings, for chemical, pharma and water plants.

DIN 3202BS 5156PN10 · ANSI #150ISO 9001 · 14001 · 45001
Weir type valve
Weir type
Straight through valve
Straight through
Pneumatic actuated valve
Pneumatic actuated
Check valve valve
Rubber lined check valve
DN 15–300Size range
17Industries served
PTFE · FEP · PFALining options
ISO 9001 · 14001 · 45001Certified

Our range

Our products

Every valve is bidirectional, suits on-off and moderate throttling duty, and has no leak path around the stem.

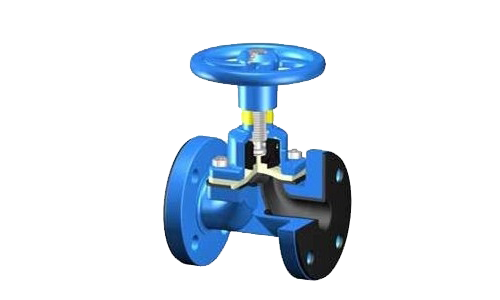

DN 25–300Weir type diaphragm valve

Weir type diaphragm valve

DN 25 to 300. Body in CI, DI or alloy steel, rubber lined or unlined. Diaphragms in natural, butyl, neoprene, EPDM, nitrile, Hypalon or PTFE with rubber pad.

View details →

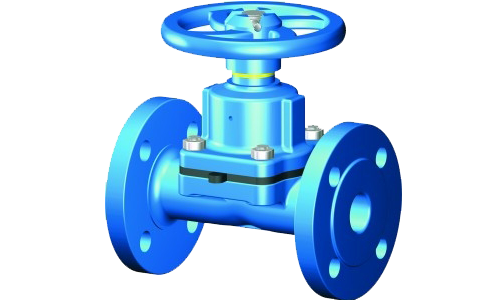

DN 25–300Straight through diaphragm valve

Straight through type

DN 25 to 300. Full-bore flow for slurries and viscous fluids. Unlined raised face or rubber lined full face.

View details →

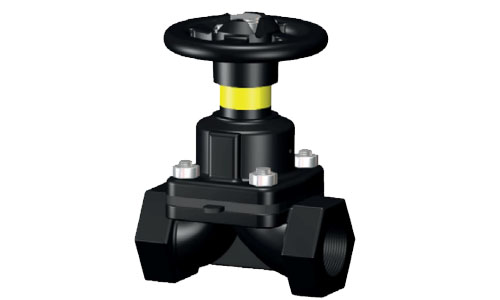

DN 25–50Screwed end diaphragm valve

Screwed end, weir and ST type

DN 25 to 50. BSP or NPT ends in CI, DI, or investment cast CF8 and CF8M stainless steel.

View details →

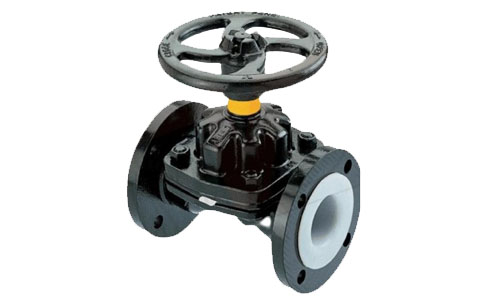

DN 15–250PTFE lined diaphragm valve

PTFE lined diaphragm valve

DN 15 to 250. Ductile iron or cast steel body lined with PFA, FEP, ETFE, PVDF or PP for severe corrosive service.

View details →

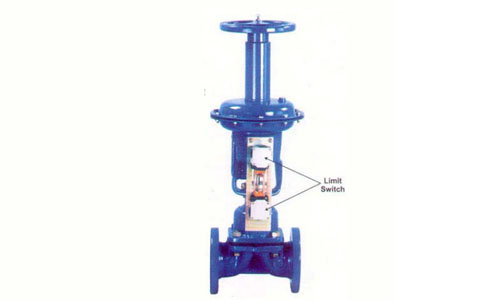

DN 25–250Pneumatic actuated weir type valve

Pneumatic actuated weir valve

DN 25 to 250. Single acting, normally closed (air to open), with top-mounted emergency handwheel and limit switches.

View details →

ACTUATORSPneumatic actuators

Pneumatic actuators

Direct, reverse and double acting. Ambient -20 to +70 °C, position indicator, and room for positioners, solenoids and limit switches.

DN 25–200Rubber lined check valve

Rubber lined check valve

DN 25 to 200. Flanged, PN10, rubber lined. Non-return valve that lets flow pass one way and stops it coming back.

View details →

SPARESDiaphragm valve parts

Spare parts

Diaphragms, compressors, bonnets, spindles, handwheels, studs, nuts and thrust washers for weir and straight through valves.

View details →

Dimensions

Weir type: face-to-face length

Unlined raised face valves, in millimetres. The full dimension tables are in the catalogue.

DN253240506580100125150200250300
A, BS127146159190216254305356406521635749
A, DIN160180200230290310350400480600730850

Ask for the full catalogue

Applications

Industries we serve

From sugar mills to pharma plants, wherever leakage into or out of the system cannot be tolerated.

  • Equipment manufacturers
  • Sugar
  • Boiler manufacturers
  • Petroleum refineries
  • Heavy engineering
  • Power plants
  • Fertilizers
  • Chemicals
  • Cement
  • Dairy
  • Oil and gas
  • Sewage treatment
  • Pharmaceuticals
  • Textiles
  • Water treatment
  • Steel and allied
  • DM plants

Our clients

Trusted by leading organisations

We have supplied valves to government and public sector organisations across India.

  • NTPC Limited
  • Steel Authority of India Limited (SAIL)
  • Bharat Electronics Limited (BEL)
  • Electronics Corporation of India Limited (ECIL)
  • Uranium Corporation of India Limited (UCIL)
  • NLC Tamil Nadu Power Limited (NTPL)
  • International Centre for Automotive Technology (ICAT)
  • National Fertilizers Limited (NFL)

Export

Exporting from India

Our factory sits in Belur Industrial Area, Dharwad, 30 km from Hubli Airport and about equidistant from Pune and Bengaluru. We welcome enquiries from importers, distributors and EPC contractors in Europe, the Middle East, Africa and Asia.

Send us the size, body and diaphragm material, pressure and fluid, and we will reply with a quotation and delivery terms.

Quality

Quality

Certified by Bureau Veritas (UKAS accredited) to ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 for the manufacturing of diaphragm valves. Certificate no. IND.25.88/IM/U, valid until 25 February 2028.

Actuated valves are assembled and tested at our facility, and each is traceable by its riveted aluminium plate.

ISO 9001:2015ISO 14001:2015ISO 45001:2018

Certificate no. IND.25.88/IM/U · Valid until 25 February 2028
